TDA7360 stereo circuit schematic

TDA7360 stereo  circuit schematic

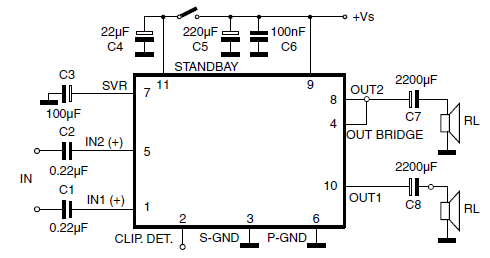

Above circuit diagram shows this TDA7360 stereo test and application circuit schematic.
Value recommendation of each external components of this circuit can be
described as follows: 1. C1 for input decoupling (CH1) is 0.22 uF
2. C2 for input decoupling (CH2)3is 0.22 uF
3. C3 for supply voltage rejection filtering capacitor.
4. C4 for 22uF standby ON/OFF delay
5. C5 minimal 220uF for standby-pass
6. 100 nF for C6 with its ability to supply by-pass
7. 2200 uF for the C7 of Output decoupling CH2
